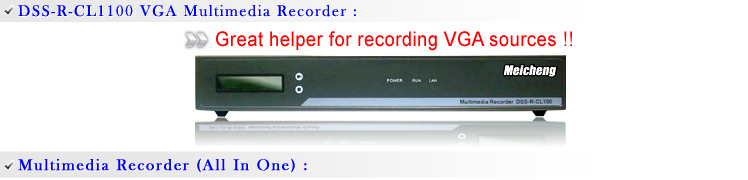

DSS-R-CL1100 Multimedia Recorder
DSS-R-CL1100 Multimedia Recorder
The Internet is the greatest invention in century 20. It makes you to reach the indeed information anywhere.
You can catch Internet audio video interaction and streaming via Easy Recorder!

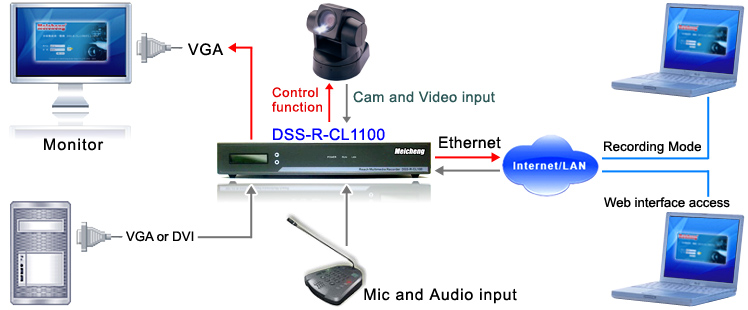

The DSS-R-CL1100 Multimedia Recorder is a special hardware device used for transmission of high-definition video signals, VGA signals over network. It supports encoding of 720p/ 1080i/ 1080p high-definition video signal and 1400 X 1050 VGA signal. This product adopts high-performance DSP chip and embedded operating system. It features stability, reliability, high definition, low bit rate and low delay. It can be extensively used in applications where the collection and IP network-based transmission of high-definition video signals and VGA/DVI signals are required. It can satisfy the application requirements for recording presentations, conferences, training, monitoring and surveillance.
‧ Support 30 frames encoding of high-definition video signal 720p/ 1080i/ 1080p.
‧ Support 30 frames encoding of maximum 1400 x 1050 VGA signal.
‧ Support AAC-LC voice encoding algorithm. Frequencies of 8k to 96k and bandwidths of 16k to 256k are adopted.
‧ Support serial port operation and control .
‧ Support various picture display modes (POP / PIP).
‧ Web interface, Panel display, RS -232 Serial interface, third party control (ex. AMX and Crestron).
‧ Simultaneously record VGA or DVI, Video and Audio signals into a single .AVI or .ASF file.
‧ Capture 100% of the native image quality from VGA or DVI signal source, and can synchronously combinewith audio sources.
Multimedia Recorder is the good partner of VOD. It allows viewing in real time, or downloads it to a computer for viewing at any time. VOD streaming, whereby a user buys or selects a movie or study lessons and it begins to play on the PC almost instantaneously, or downloading to a DVR rented from the provider, for viewing in the future. You can record any e-teaching or micro teaching. Multi-Media Presentation can support schools, universities, video teleconferencing, distance learning and so on.
Meicheng products are used in a wide range of military, medical imaging, security, transportation and forensic applications in which VGA/DVI output is critical to effective communication. Meicheng expands customer service in Taiwan National Palace Museum, Central Trust of China, the Ministry of National Defense and so on.
Browse through the left sidebar listings to learn more about Meicheng and our management team, to read our latest news, to browse our career openings, or to contact us.
EX-G053 / Dual-View Video Processor
Dual outputs (DVI / VGA), 640 x 480 to 1920 x 1200.
PIP, PAP, Full screen modes and adjustable size & position through software.
Titles, borders and colored backgrounds.
Resize, position, flip, zoom & pan and blend output video.
Can be cascaded to obtain more images.
Image parameters and layouts are automatically saved in fresh memory and can be recalled for later use.
EX-G056 / Quasi Quad-View Video Processor
Dual outputs (DVI / VGA), 640x480 to 1920x1200.
Can be cascaded to obtain more images.
Image parameters and layouts are automatically saved in flash memory and can be recalled for later use.
Several image parameters and layouts can be saved in computers and can be loaded for later use.
Video parameters adjustable. (brightness, contrast, color temperature, etc.)
Perfectly as a video screen splitter, a video converter and a video switcher.
Software control through : RS-232, RS-485 over Cat-5.
EX-G058 / Nine Display Dual-View Videowall Processor
Nine DVI outputs from 640x480 to 1920x1200.
Each DVI output has an independent controllable display area.
Can be cascaded to obtain more displays.
Three graphic (DVI / VGA) and two video (Component / Composite) inputs, from 640x480 to 1920x1200, interlaced or progressive.
PIP, PAP, Full screen modes and adjustable size & position through software.
Titles, borders and single color background.
Resize, position, flip, zoom & pan and blend output video.
EX-G015 / HDMI over single CAT5 Distribution Series
EX-G015 State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and reliability.
HDMI 1.2a compliant (EX-G015 & EX-G016 are HDMI 1.3c compliant).
Supports default HDMI EDID and has the ability to learn the EDID of displays.
Extends up to 60m (200ft) (720p / 1080i) of output CAT5 cable.
Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission.
Extends up to 40m (130ft) (1080p) of output CAT5 cable.
EX-G016 / HDMI over single CAT5 Distribution Series
EX-G016 2x8 HDMI 1.3 over Single CAT5 Cascading Distribution Amplifier allows you to distribute one of the two HDMI/DVI video sources up to 8 separate HDTV displays including one remotely cascade output via Cat-5/5e cost effective cable.
HDMI video distribution to up to 7 displays and one CAT5e Receiver or cascade to another EX-G016.
Acts as a 2x1 HDMI switch plus a 1x8 HDMI over CAT5 splitter.
Minimizes the cable skew by adjustable 8-level equalization control .
Supports default HDMI EDID and has the ability to learn the EDID of displays.
Up to 60m (200ft) at 1080i and 40m (130ft) at 1080p through Cat-5e cables .
SB-5544 & 5548 / AV Matrix Switcher
AV Matrix Switcher (SB-5544 & 5548) is an audio video mixer / matrix switcher via remote controller.
It has LED Display, Channel buttons, RS-232, and IR remote controller.
Both SB-5544, 4 X 4 audio video matrix switcher, and SB-5548, 8 X 8 audio video matrix switcher, can work with DVD, VCR, VCD, satellite receiver, security CCD, handy cam, and video Games.

SB-4140 & 8180 & 8188 / VGA Matrix Switcher
VGA Matrix Switcher is a 4 inputs and 4 outputs high performance VGA (RGBHV) matrix switcher via remote controller.
It has LED display, channel buttons RS-232, and IR remote controller.
SB-8180 is an 8 X 8 VGA matrix switcher. SB-8188 is an 8 X 8 VGA Matrix Switcher + Stereo Audio.
SB-4140, SB-8180 and SB-8188 VGA matrix switchers can work with a satellite receiver.
CSC-1600HD / Video Scaler
CSC-1600HD has two sets of output connectors for you to choose from the HD-15 D-sub and the RGBHV BNC jacks. Only one of the two output terminals has signal running on it at one time.
When one output terminal is selected the other terminal will have no output signal. You can use the two buttons (HD-15 and BNC) on the remote control to choose your desired output or you could go to the "Output terminal" tool bar under the ON Screen Menu to choose the terminal you want.
CP-255I / Scaler Box
Meicheng CP-255I Scaler Box is designed to upscale digital/analog video signal from Composite, S-Video, PC, Component (HD) and HDMI input sources, to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p and WUXGA (1920 x 1200.) Besides video upscaling, the scaler box also converts digital/analog audio signal to digital format, then output either through HDMI combining with the video, or Coaxial S/PDIF separately.
Meicheng CP-255I has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.
KPS-12SD / Power Supply Controller
40amp rating, with circuit breaker. Voltmeter to display incoming mains voltage.
Good-sized connection terminal equipped with protective shield to guaranty the security.
12-channel output, each with 10amp, uses all-purpose outlets for different plugs.
The KPS-12SD offers all basic power conditioning features. It provides varistor spike and surge protection across all three modes (line to neutral, line to ground, and neutral to ground), specialized 40amp multi-stage EMI filter is used to purify system power. The filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of "electronic pollution" from leaking from the AC line to audio, video, or computer circuits.
Ensuring the system operation stability and optimal performance.
CPT-370 / PC to Video Overlay
Superimpose PC text/graphic onto video.
Mix PC picture and video.
Enjoy PC games, PC movies and internet on TV.
Education and business presentation.
Superimpose PC text and graphics onto another channel of live video.
CMX-07 / Digital Video Processor
4 video inputs-2 composites and 2 s-video.
2-channel full-field digital synchronization.
Special effects in each of A/B program buses.
2 video inputs mixable with composite and s-video sources.
